12k x 6 channel CD80 dimmer pack

The 6ch x 12kw CD80 is a rugged, portable dimmer pack with six independent 12kW channels (total 72kW), built for high-load theatrical and film lighting.

Key Specs:

Channels: 6 × 12,000W dimmers

Input: Camlock power (three-phase required for full capacity)

Output: 100A Bates-style connectors

Dimensions: 8″ H × 21″ W × 24″ D

Cooling: Internal fan

Protection: Individual primary breakers per channel

The CD80 line is industry-proven for reliability and flicker-free performance, even with low-wattage fixtures.

Note:

See PDF manual for detailed specifications.

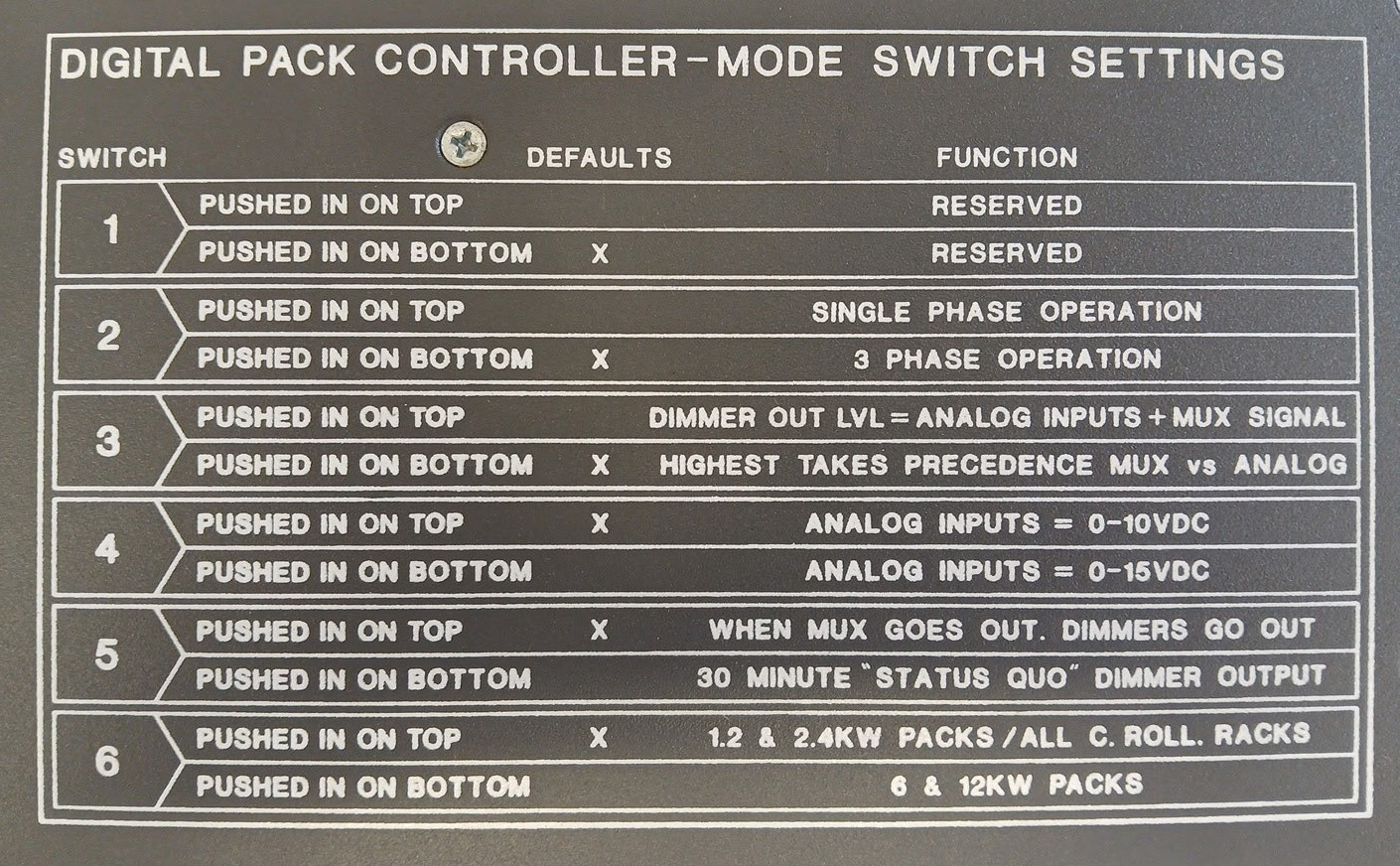

DIP switch settings are shown in product images.

Our CD80 packs have been upgraded with four D-rings—one on each corner. These D-rings are rated and thru-bolted for safety, allowing the packs to be securely rigged in the grid.
