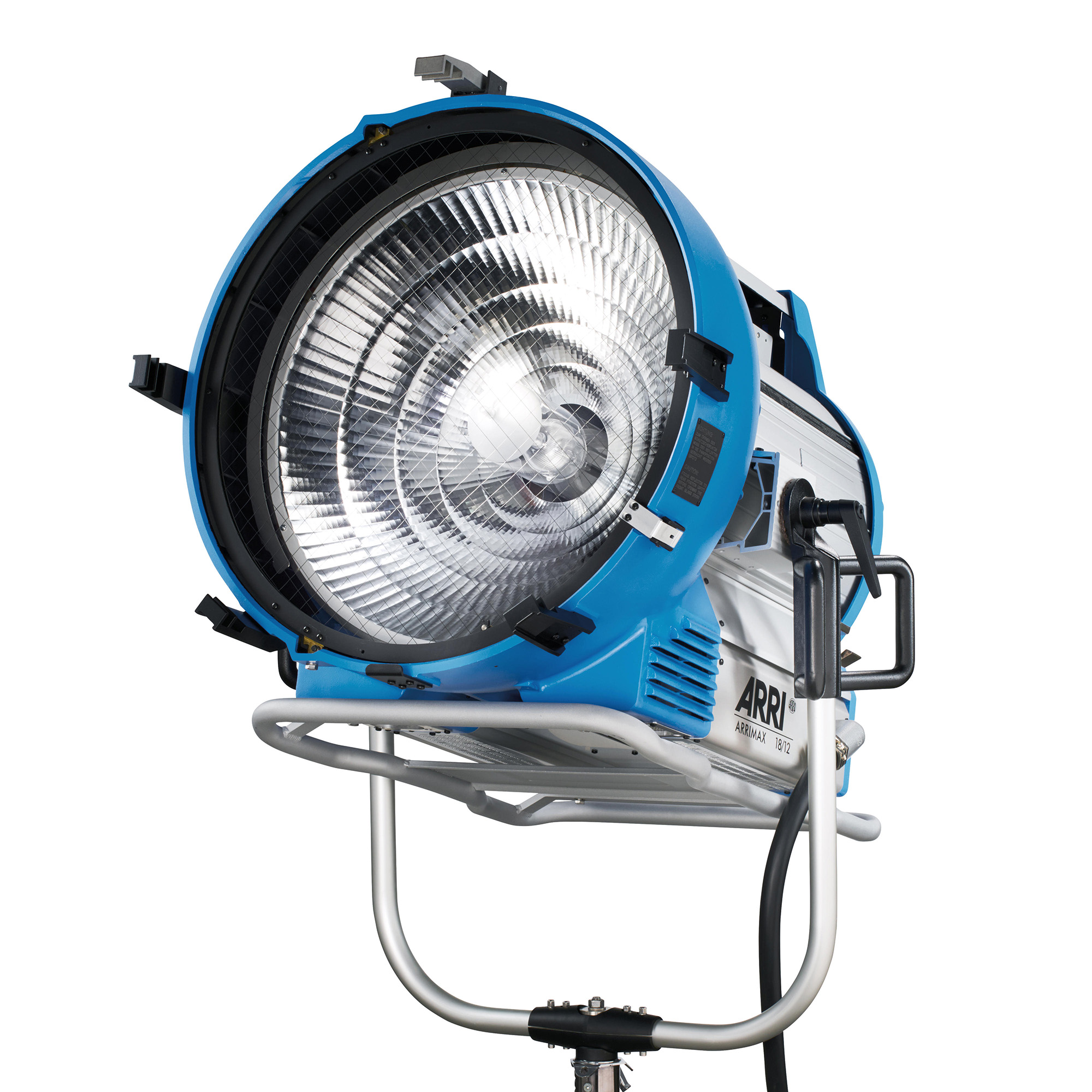

18k ARRIMAX hmi par

The original Academy Award-winning ARRIMAX remains the ultimate choice for productions requiring maximum light output. The 580 mm (22.8”) diameter, parabolic facetted reflector provides continuous focus adjustment from 15 Deg. to 50 Deg. beam angle and, since the ARRIMAX does not require a set of spread lenses, shadows are sharp and easily cut.

Safe and easy for both lamp type bases 18/12 kW, 18,000 W single ended lamps use a sturdier GX51 lamp base for which ARRI engineers have designed a special lampholder that alleviates mechanical stress from the lamp pins, now serving only as an electrical connection. The lamp clamping mechanism is self-aligning and uses a rugged, recessed lamp lock handle. To ensure that crews can easily use 12,000 W lamps or versions of 18,000 W single ended lamps with G38 bases, the new lampholder accepts either lamp type with no modification or adjustment.

Features

– Lens-less MAX Technology
– 15 Deg. to 50 Deg. continuous beam angle: standard reflector
– 8 Deg. to 15 Deg. beam angle: spot reflector
– Easy re-lamping
– ARRI Dual Pin Width support (GX51/GX38)
– IP Rating IP23
– Suitable for high frame rate images
