6k x 6 channel CD80 dimmer pack

Strand Lighting CD80 solid state portable dimmer packs have offered solid reliability to users for over 10 years with thousands of systems in use. This is a 12KW watt maximum, 6 channel dimmer pack. Each channel has a Cam-Lock style, 200 amp input connector.

The CD80 provides a rise time of not less than 350 microseconds. Output response time (from control signal change) is less than 0.1 seconds The pack regulates output voltage with changes in the AC line from 108 to 130 volts RMS.

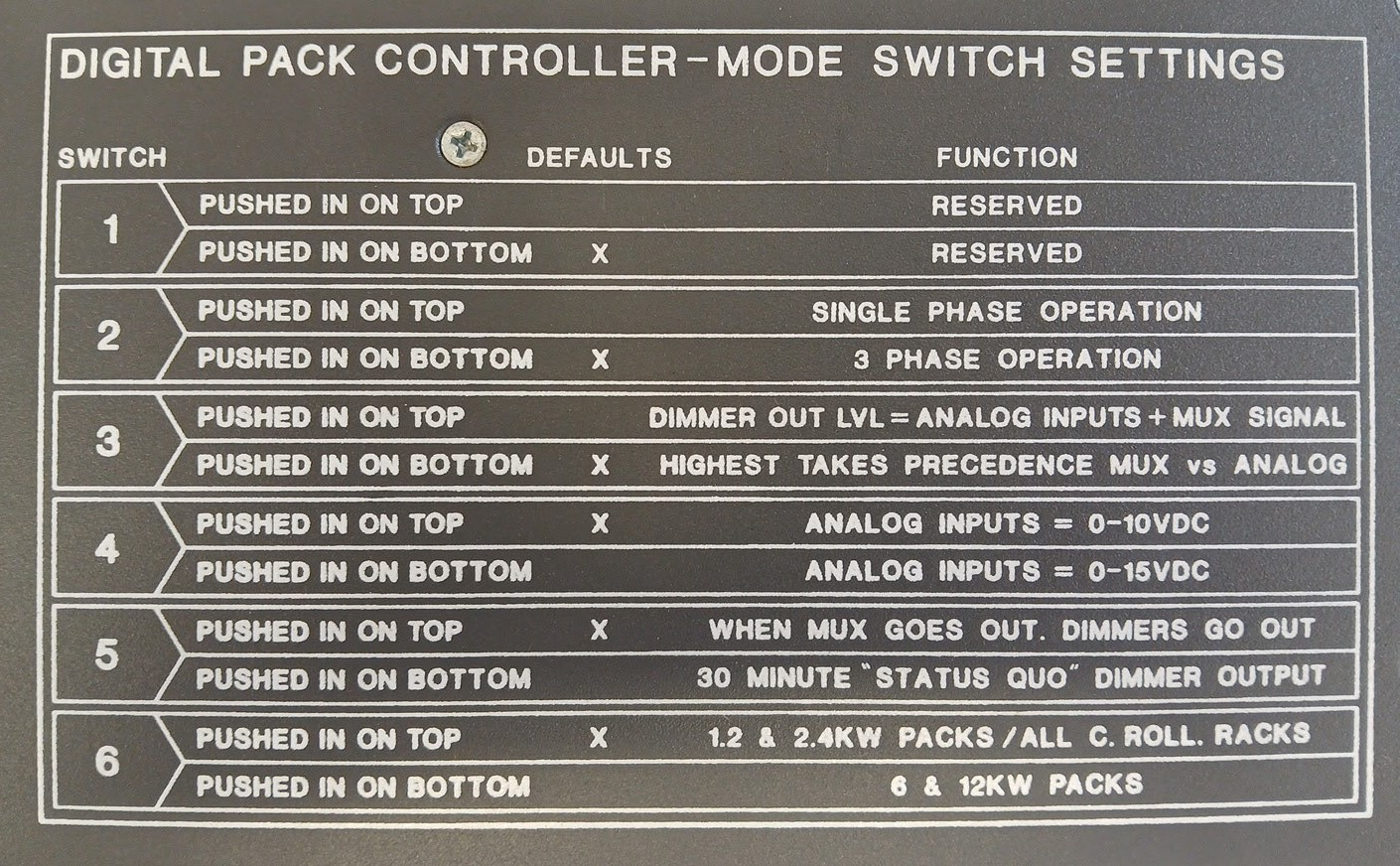

The optional Controller has dip switches to select the rack Mode, and one primary, fully magnetic circuit breaker for each dimmer, mounted to the front panel that provides protection for individual dimmers.

The CD80 case features a removable cover for access to all components, an interchangeable rear connector panel and recessed carrying handles.

Circuit breakers protect against shorts and overheating; they are rated for 100 percent switching duty applications; UL and CSA rated.
Plastic materials are self-extinguishing to UL94VO.

All pack setup is achieved through switch and jumper settings. Setup configuration may only change if reconfigured manually by the user and there is no possibility of losing setup configuration due to memory loss.

The CD80s feature 100 CFM low noise fans for quite and efficiant cooling.
