ETC pad

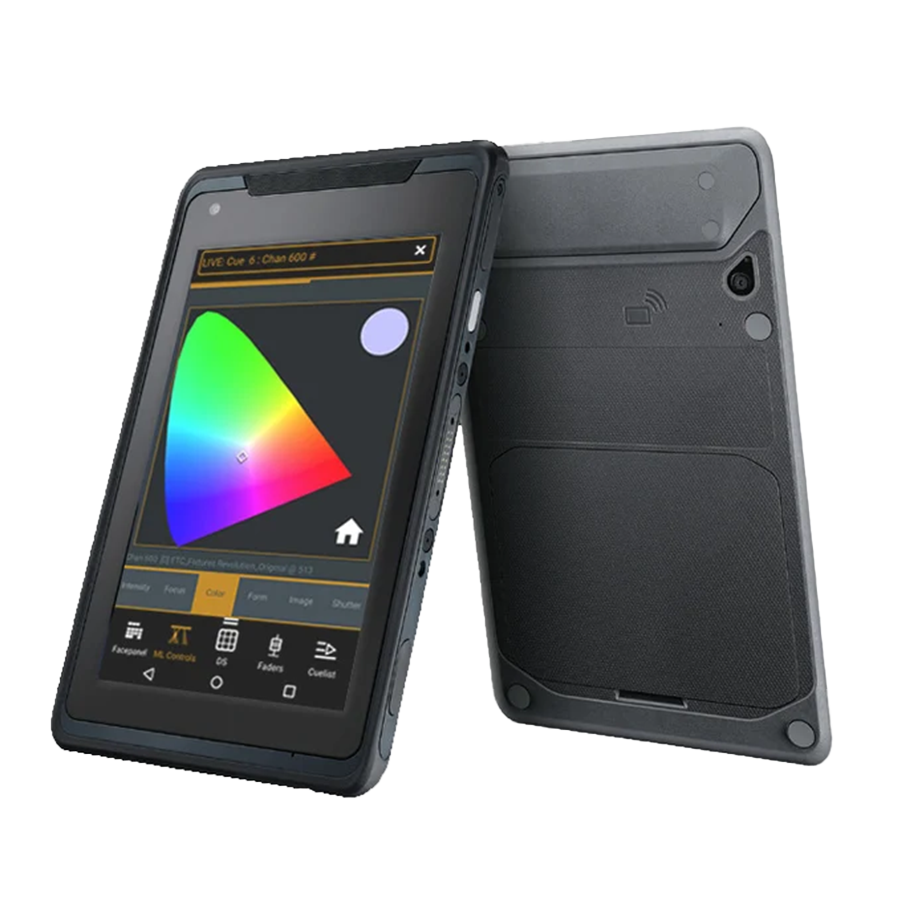

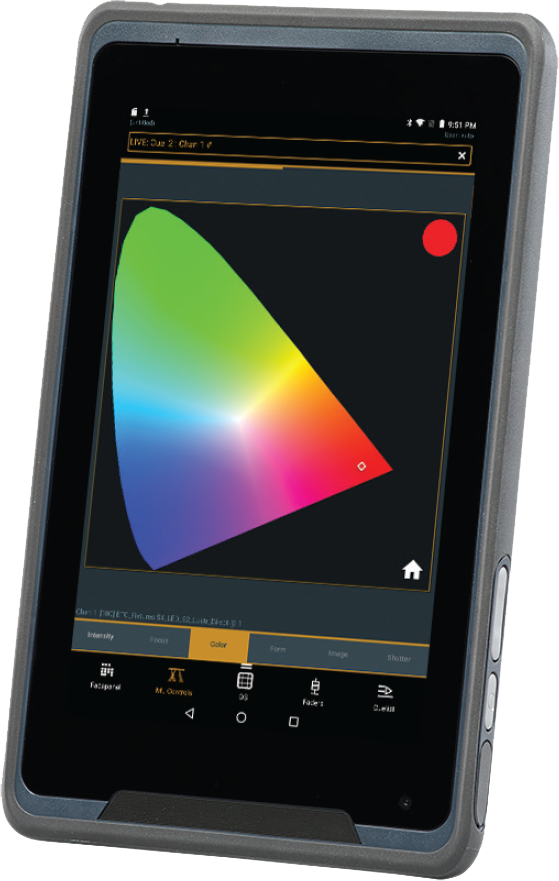

Designed for ETC’s Eos® system, The ETCpad (ETC Portable Access Device) offers purpose-built, touchscreen-based wireless or wired remote control, combining the convenient functionality of the aRFR / iRFR mobile apps with a dedicated, 8″ industrial-grade tablet designed to withstand the wear and tear of production.

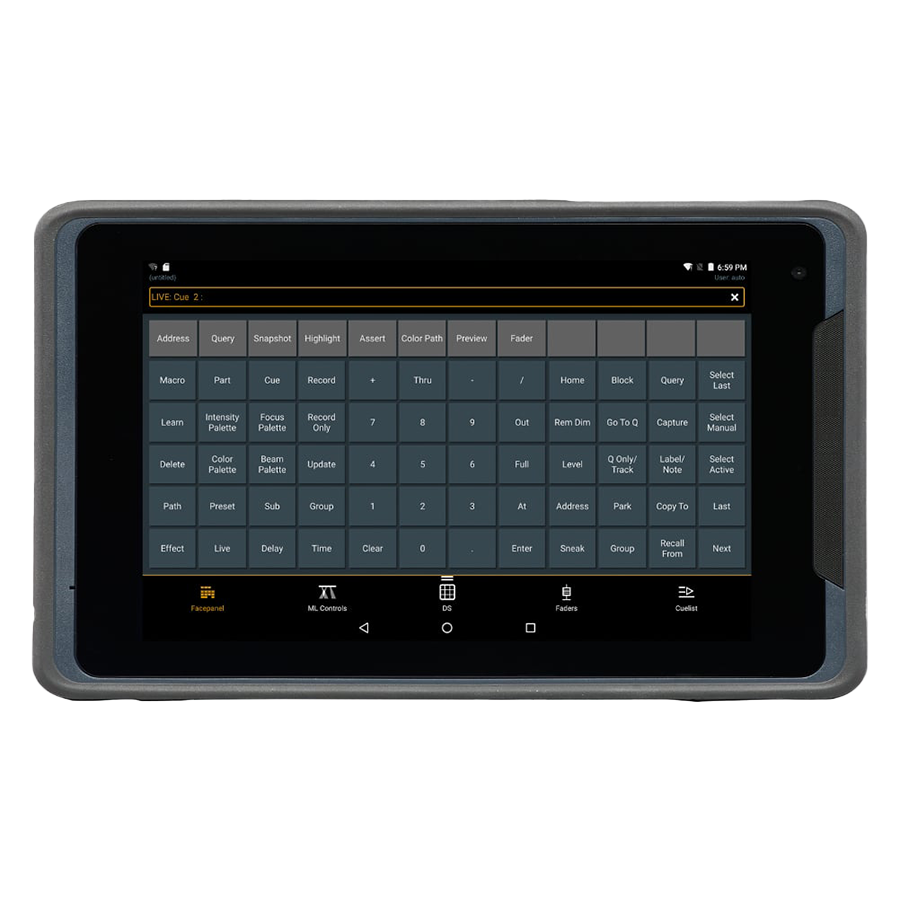

The ETCpad provides access to live programming functions, playback, parking and patch using a full function soft keypad and tabs for ML controls, direct selects and playback controls. The device can connect wirelessly to your lighting network with a wireless access point, or it can connect directly to your Net3 network using a wired RJ45 connection.

The device works with all Eos® family consoles, Eos and Ion® Xe Remote Processor Units, and the Eos ETCnomad and ETCnomad Puck® software. Compatible products must be running Eos v2.6.3 or higher.

ETC ETCpad Includes:
• ETCpad
• Hand strap
• Charging cable/adapter

ETC ETCpad Features:
• Wired or wireless operation
• 8″ full HD display with scratch-resistant glass and multi-touch control
• Select channels and set parameter data
• Play back and edit cues
• Park channels
• Conduct dimmer and channel checks
• Patch conventional fixtures
• Manipulate Color, Pan/Tilt and other parameters using dedicated graphical controllers
• View a Cue List Display (monitor only), with current cue, several previous and pending cues displayed
• View and interact with a Playback display; controls include Go, Stop/Back and Go to Cue
• Access Direct Select controls
• One Micro HDMI, one Micro USB 2.0, one Micro SIM
• Power switch
• Power/battery status indicator
• Cable management for ethernet up to 6mm in diameter

ETC ETCpad Specifications:
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Operating Temperature when Charging: 32°F to 104°F (0°C to 40°C)
• Dimensions (HxWxD): 5.59″ x 9.44″ x 0.57″ (142 x 240 x 14.5 mm)
• Weight: 1.32 lbs (0.6 kg)

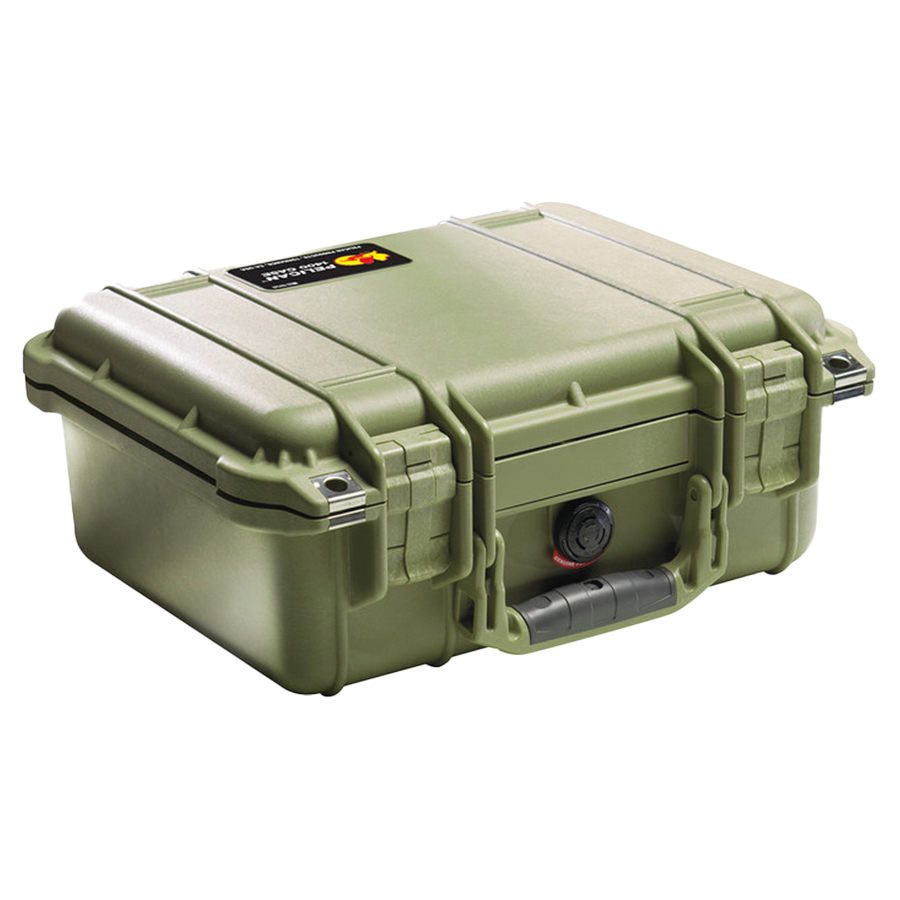

Includes custom pelican case.

WiFi mesh kit also available for networking your system.
