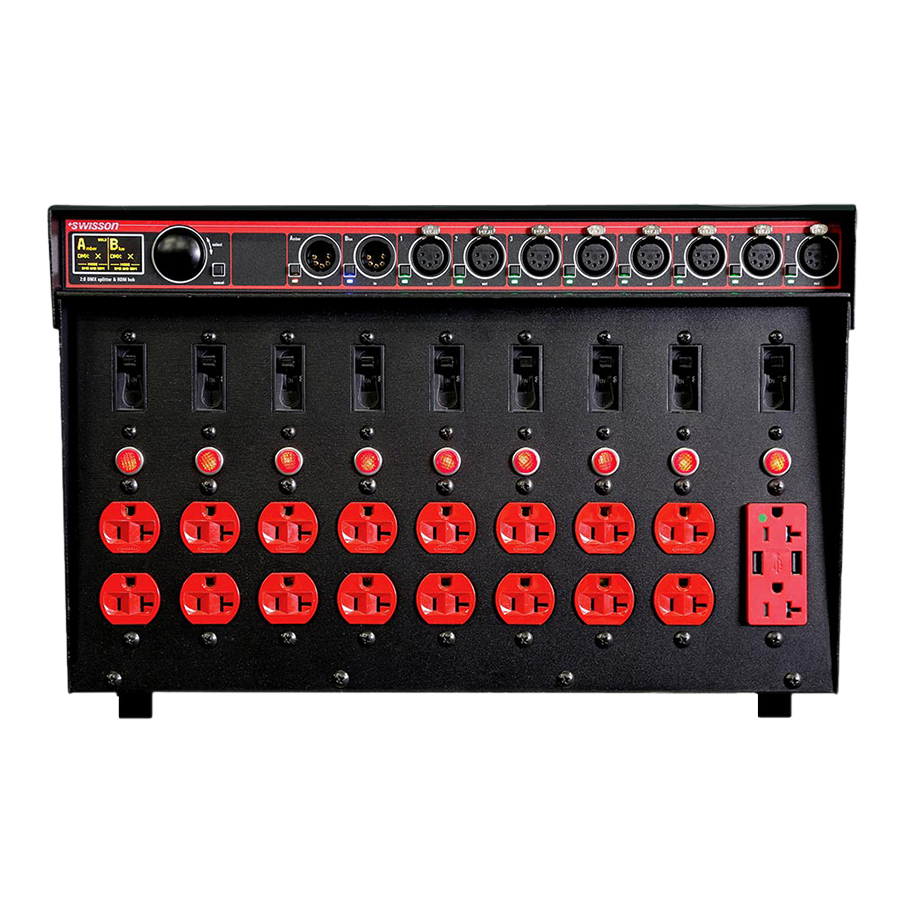

OctoCAT-E lunch box w/8-port node

The OctoCAT is a high-density power and data distribution lunchbox optimized for LED-heavy rigs where outlet count is prioritized over raw amperage.

Power Configuration

Input / Feed-through: 100A Bates.

Primary Outputs: 8x 20A Edison duplexes.

Auxiliary: 1x 20A Edison duplex with dual USB-A ports (operates as a 9th circuit).

Data Integration

DMX Networking hardware: Integrated Swisson 8-port ethernet node.

Protocol: Ethernet-based (ethercon ports) data transport to the point of distribution.

Core Utility

Consolidation: Combines 100A power distribution with data splitting, eliminating the need for standalone Opto-splitters or separate data runs to the same location. Run your 100 amp bates cable with a matching Ethercon extension (Smart Bates).

Pair with our DMX opto Sidecars for additional DMX ports.
