sidecar wireless dmx lunch box attachment

Add SIDECAR to your existing Lunchbox instantly transforming it into a Power+Data Box.

Or simply deploy SIDECAR along any typical stage-pin cable run where a wireless transceiver/opto-splitter is needed.

SIDECAR is the most versatile and scalable way to integrate DMX.

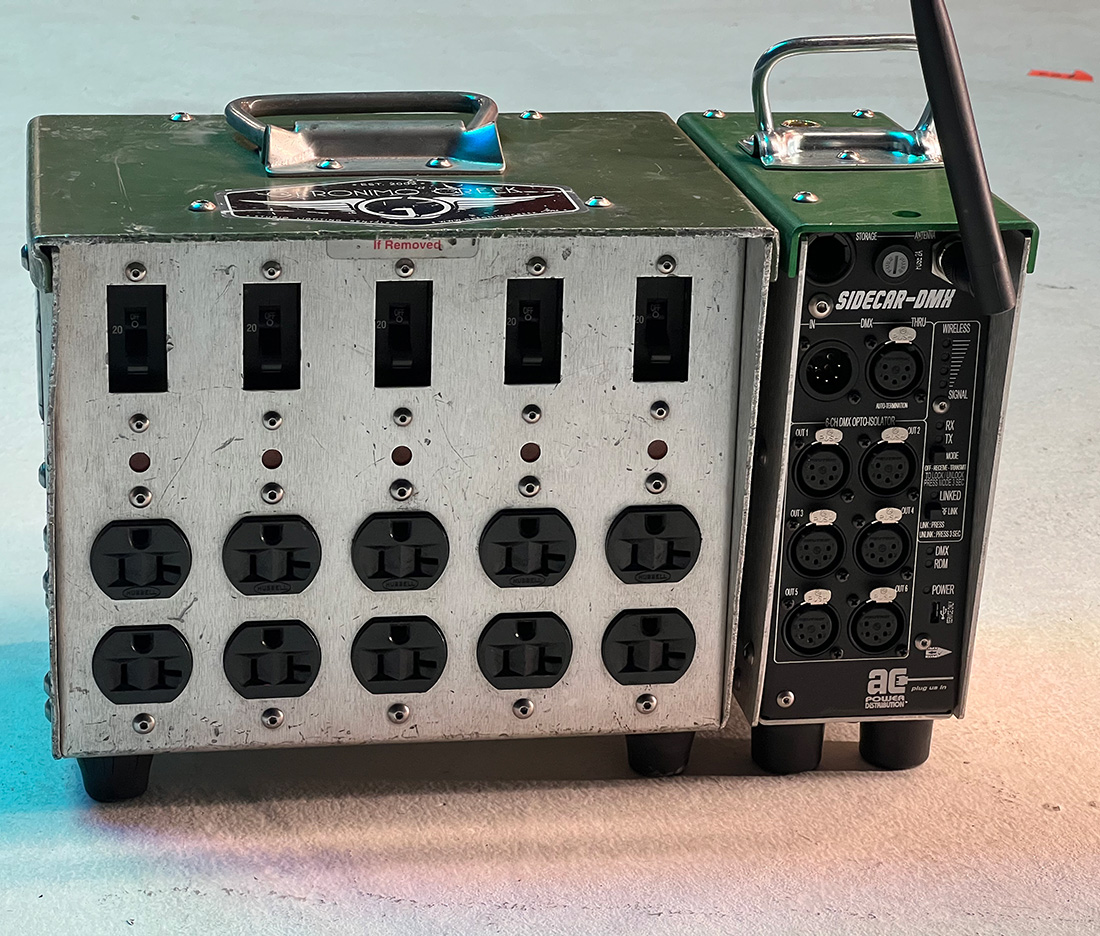

SIDECAR is unique as it’s a SIDECAR to our popular SST Series Lunchboxes! Simply plug into the Lunchbox’s flow-thru to create a power+data box with no tools required. SIDECAR does not impair normal use of the Lunchbox, simply “flow-thru” as you traditionally would using SIDECAR’s very own flow-thru. Continue your cable run or plug in another SIDECAR for additional distribution or DMX universes.

The SIDECAR also works great as a stand-alone unit installed anywhere in a stage-pin cable run, making it one of the most robust and convenient wireless opto-splitters available.

– SIDECAR distributes, regenerates and boosts DMX & RDM.
– DMX in/thru, auto termination, and 6 individually optically isolated outputs.
– CRMX wireless technology utilizing LumenRadio’s TimoTwo suite of features.
– Bluetooth smart support.
– Functions as a DMX wireless receiver or transmitter at the push of a button.
– Full RDM support and visible to RDM controllers. (When used with RDM supported devices)
– Compatible as a receiver with WDMX transmitters running G2 through G4S 2.4GHz.
– Wireless functions can be turned off at the push of a button.
– In/Thru port is operational and passes data even when SIDECAR is not powered.
– 5-pin XLR connectors. RJ-45 models also available. (Termination switch in lieu of auto-termination)
– DMX 6x Splitter functions regardless of wireless mode setting.
– Status quo. LED power, status & signal indicator lights. Removable “Rubber Duck” antenna.
– Antenna Garage provides secure storage of the antenna inside the unit; no more lost antennas or broken antenna clips!
– Recessed output connectors, antenna jack, buttons, and status lights help prevent damage.
– Easily install rigging hardware utilizing the built in 3/8-16 threaded insert or 3/8” pass-thru hole.
– Durable, compact, anodized aluminum enclosure in an industry proven and familiar form factor.
– Enclosure lid is available in optional select colors to help customize your equipment. (Silver/Clear Anodize shown is standard)
– UL Listed for USA & Canada.
