The Power of the ARRI SkyPanel S360-C: A Gaffer’s Field Report

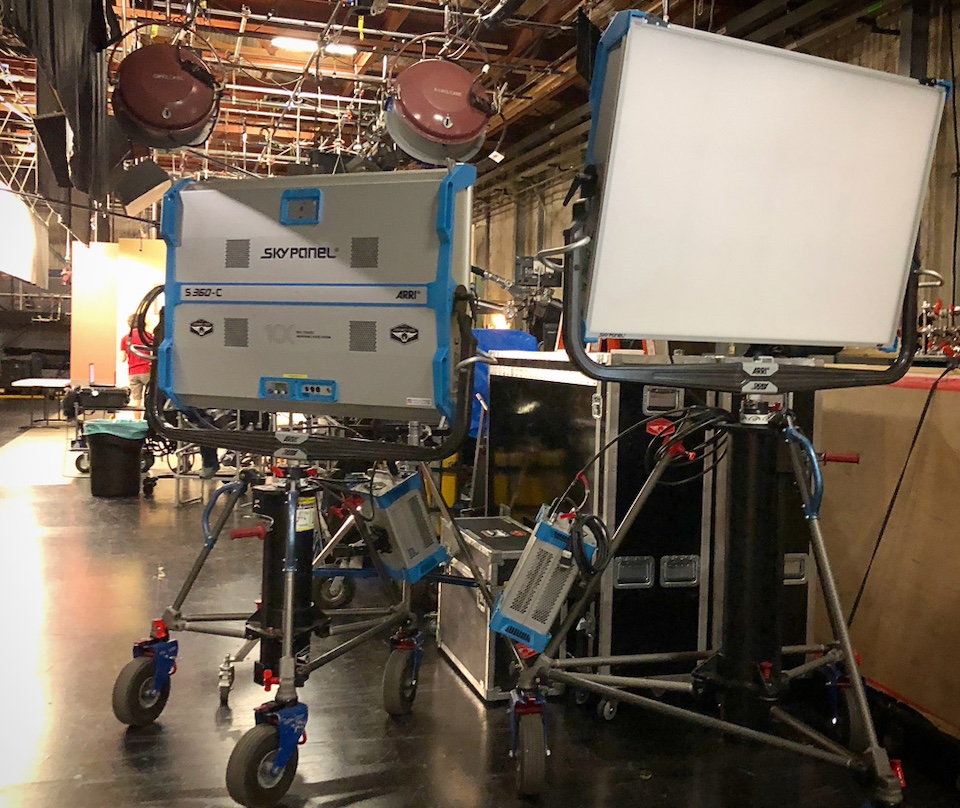

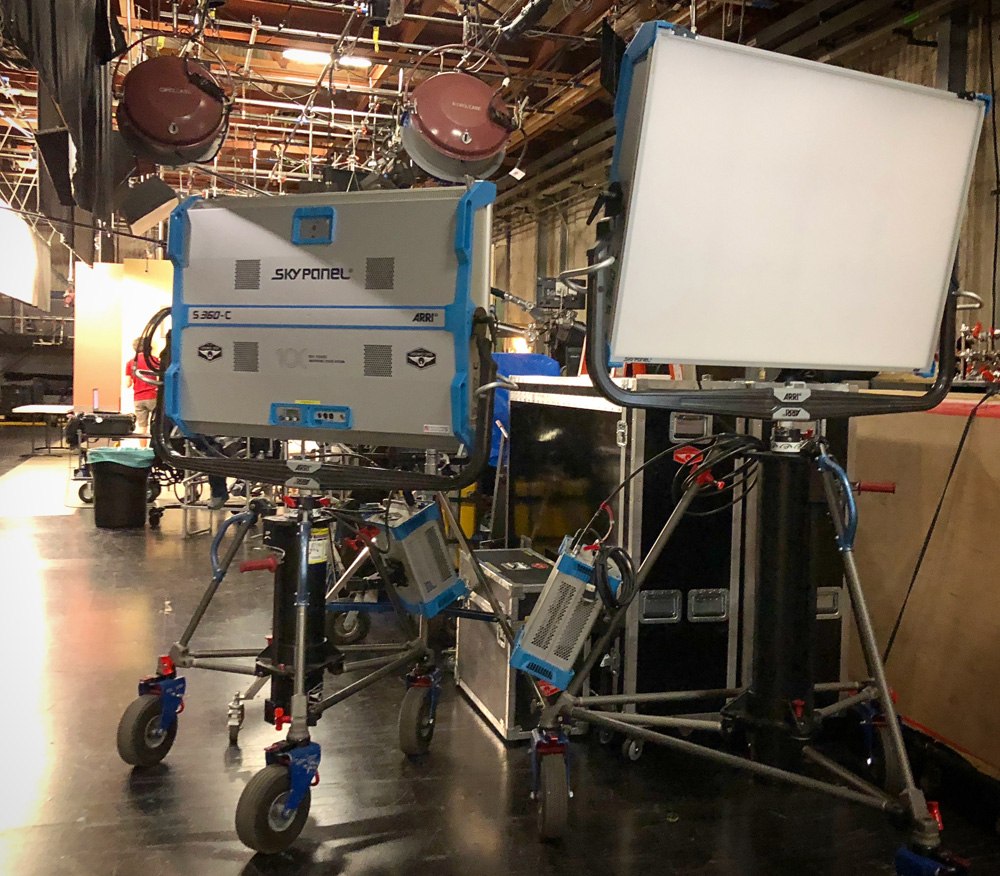

When ARRI first announced the SkyPanel S360-C, we knew it was a game-changer for the film industry—so much so that we added four units to our fleet the very same day. Working with the ARRI SkyPanel S360 in the field, it is clear that the S360 is more than just a “large LED.” It is a surgical tool of immense power, designed to solve the specific logistical nightmares gaffers face on modern sets. From battling the Southern California sun to navigating the vertical challenges of DTLA high-rises, here is our field report on why the S360-C has become an indispensable asset in our inventory.
Case Engineering: Slim-Profile S360 Kits for LA Locations
In addition to the fixture’s power, we worked closely with Innerspace Cases Co. to engineer a bespoke housing that is both sturdier and more compact than the factory ARRI version. As a result, our S360 kits now include a DOP SnapGrid, intensifier, and short yoke fitting—conveniently packed into a footprint small enough to navigate the tight elevators and narrow hallways of downtown Los Angeles with ease
Combating Daylight on House Power: High-Floor Production Logistics

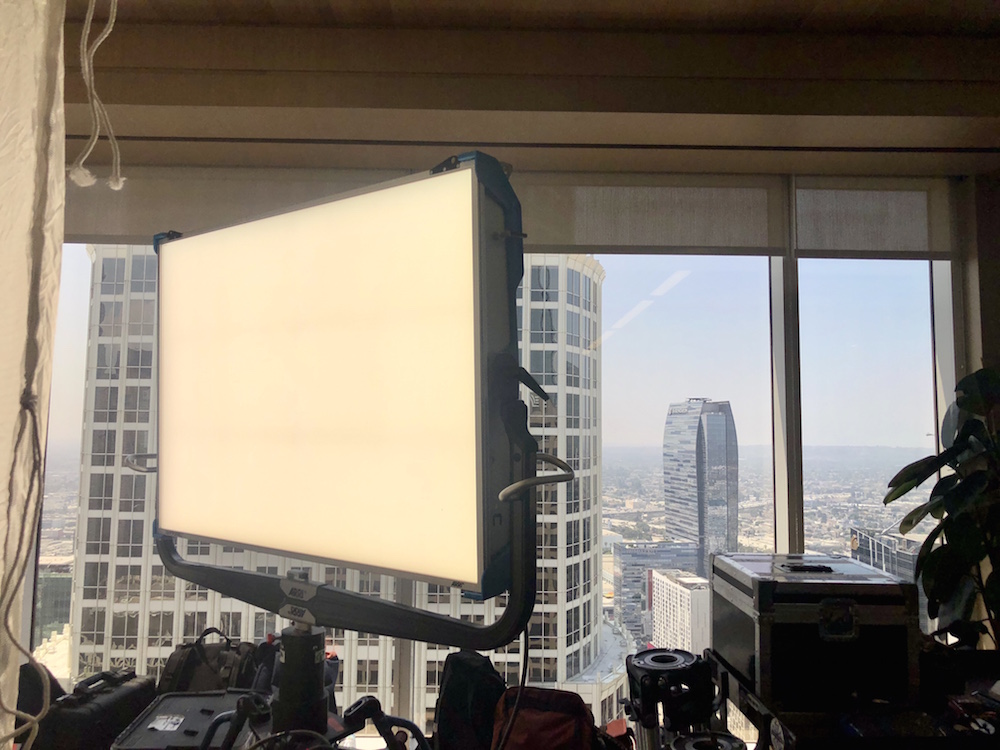

For instance, on a recent LinkedIn commercial, we filmed on the 23rd floor of a DTLA high-rise. Despite the location’s challenges, our four-head S360 package delivered enough firepower to battle daylight while running solely on house power—an impossible feat for traditional fixtures
Output & Control: 12-Panel Pixel Mapping and Built-in Wireless DMX

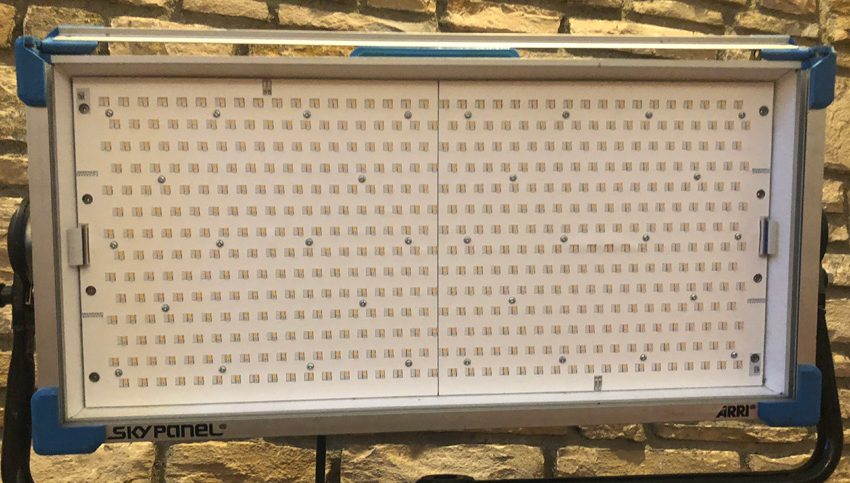

Think of it this way: the ARRI SkyPanel S360 packs the punch of six S60s into a single unit. Twelve controllable panels divide the array, allowing users to create more intricate pixel-mapped effects than ever before. We prioritize wireless connectivity, ensuring the fixture remains fully compatible with RatPac’s Cintenna (LumenRadio) hardware. Finally, whether you prefer an iPad-based workflow like Stellar or a physical desk like the ColorSource 40, we provide the control solution to match your needs.
Efficiency in Scale: Why the S360 Beats Multi-Head S60 Rigs

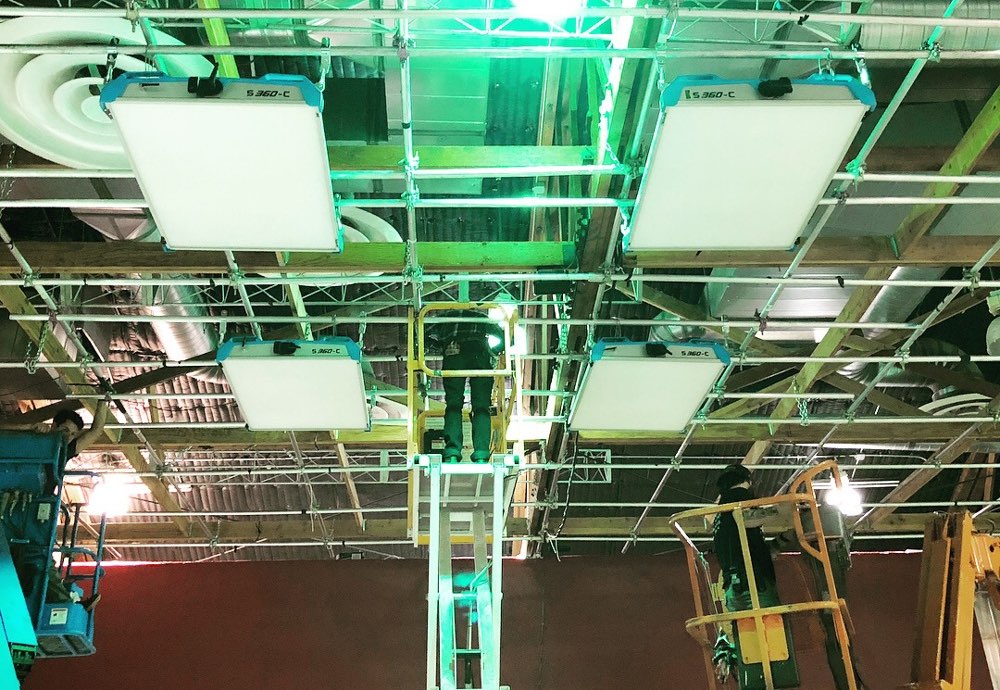

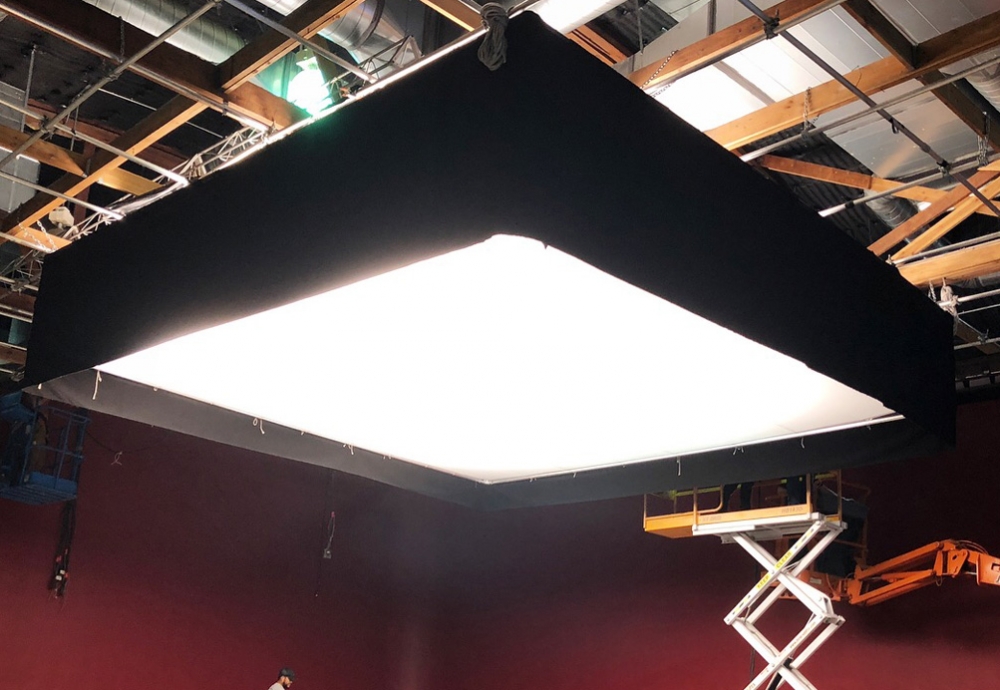

While it may seem substantial, the ARRI SkyPanel S360 weighs only 85 lbs, which is actually half the total weight of the six S60s required to match its output. By opting for the S360 over a bulky array of smaller heads, crews can significantly save on labor, rigging hardware, and overall rental costs. For instance, when building large overheads like the 20×20 softbox shown below, the S360 stands out as the most weight-efficient option available for modern film sets.
The Comparison: 1x ARRI S360-C vs. 6x ARRI S60-C Array
| Feature | 1x ARRI SkyPanel S360-C | 6x ARRI SkyPanel S60-C | The S360 Advantage |
|---|---|---|---|
| Total Weight (Heads) | 85 lbs (38.5 kg) | 171.6 lbs (78 kg) | 50% Weight Reduction |
| Power Consumption | 1500W (Nominal) | 2520W (Total) | 40% Less Power Draw |
| Max Light Output | ~120,000 Lumens | ~120,000+ Lumens | Equivalent Punch |
| Rigging Points | Single Junior Pin | 6 Pins + Custom Frame | 6x Faster to Rig |
| Cables to Manage | 1 Head Cable / 1 Power | 6 Head Cables / 6 Power | Clean, Minimal Footprint |
| Wireless Control | Built-in SkyLink/CRMX | Requires 6x Receivers | Seamless Wireless DMX |
Logistical Breakdown for Production Managers
- Elevator & Doorway Access: A 6-head S60 array typically requires a wide “6-light frame” that cannot fit through standard 36-inch office doors. Our Innerspace S360 Case Design allows the unit to travel vertically, fitting into even the tightest Downtown LA elevators.
- Labor Savings: Rigging six S60s into an 8×8 or 20×20 softbox requires a team of grips and significantly more hardware (pipe, corners, and sliders). One S360 can be hung and focused by a single team in a fraction of the time.
- Power Efficiency: Running six S60s at full tilt pulls over 20 Amps, often requiring a dedicated circuit or a 7000W generator. A single S360 pulls roughly 12.5 Amps, making it much safer for standard house power in residential or office locations.
Experience the ARRI SkyPanel S360 S360-C at Geronimo Creek
Are you ready to see the SkyPanel S360 in action? Contact us for a free demo! Check out the full specs of the ARRI S360-C in our online catalog and see how it can streamline your next Los Angeles production. Use our Grip Truck Comparison Page to see which of our 2-Ton to 5-Ton vehicles is best suited to transport your S360-C and the rest of your lighting package.
